Summary:

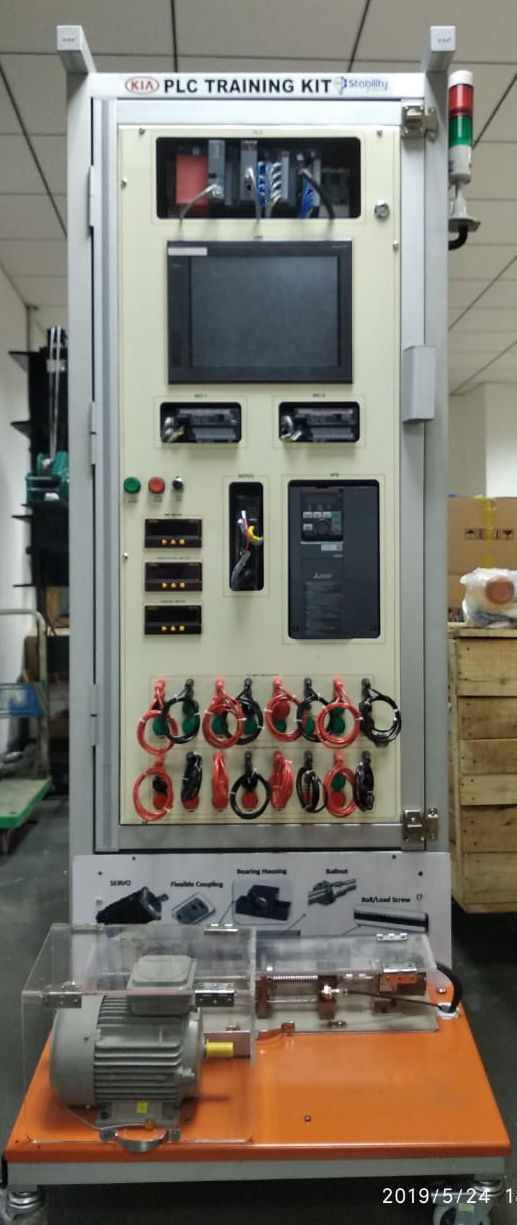

Training to Operators & Engineers with real experience gives good knowledge and skills to perform job in better way in any Industry. Advance plc training kit helps to gain knowledge on the industrial automation devices in Automotive Industry. The kit gives real experience on automation devices in the aspects of the way real machine is working and to know the working functions of Industrial Automation products like PLC, HMI, VFD, SERVO, LVDT, Remote I/O Modules etc.

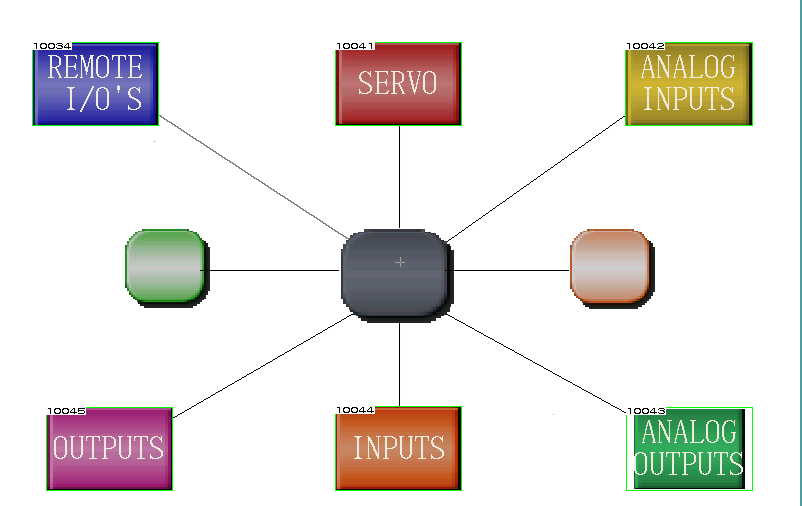

From the block diagram of system, we can observe all parameters reading with different devices like VFD-Variable frequency drive is used to run the induction motor with different speeds by varying the potentiometer. While the motor is running, Thermo couple gives temperature and c.t coil will give motor current details respectively, these parameters are connected to analog input’s & output’s modules of PLC. Here we used closed loop motion control circuit, the length movement in mm can be archived by using the servo and it is connected to Ball screw system and LVDT length feedback is displayed in HMI, it will give good insight of how close loop system is working. User can give Length and speed set points in HMI display.

The above-mentioned training kit developed by considering all real time requirements and it will give better user learning experience and system developed and delivered with best quality and user requirements.
